Ductile Iron Pipe
Ductile iron pipe refers to the pipe made by high-speed centrifugal casting of centrifugal ductile iron machine after casting molten iron above No. 18 with the addition of nodularizer, referred to as ball pipe, ductile iron pipe and ductile cast pipe. Mainly used for the transportation of tap water, it is an ideal material for tap water pipelines.
+86 15650078182
+86 15650078182
+86 15650078182
sales07@zhongximetal.com
Contact Us

Product Description

Product nameDuctile iron pipe
Size:DN80~2600mm
Material:Ductile Cast Iron GGG50
Pressure:PN10, PN16, PN25,PN40
Class:K9, K8, C25, C30, C40
Length:6m, cut to 5.7m
Internal Coating:a). Portland cement mortar lining
b). Sulphate Resistant cement mortar lining
c). High-Aluminum cement mortar lining
d). Fusion bonded epoxy coating
e). Liquid epoxy painting
f). Black bitumen painting
External Coating:a). zinc+bitumen(70microns) painting
b). Fusion bonded epoxy coating
c). Zinc-aluminum alloy+liquid epoxy painting
Standard:ISO2531, EN545, EN598, etc
Certificate:CE,ISO9001, SGS,ETC
Packing:Bundles, in bulk, Pack according to customer requirements
Application:Water supply project, drainage, sewage, irrigation, water pipeline.etc

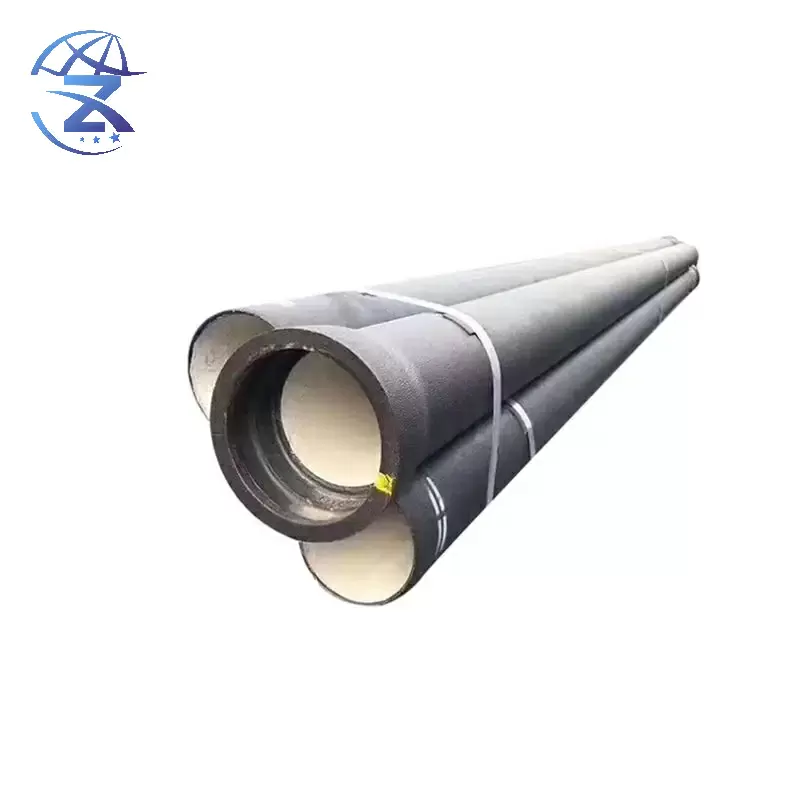

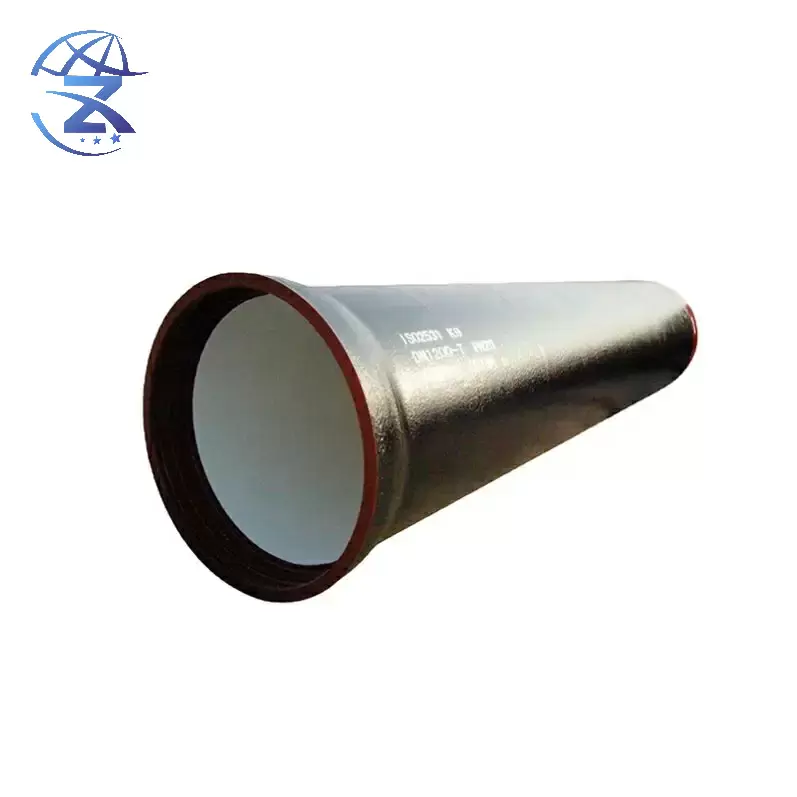

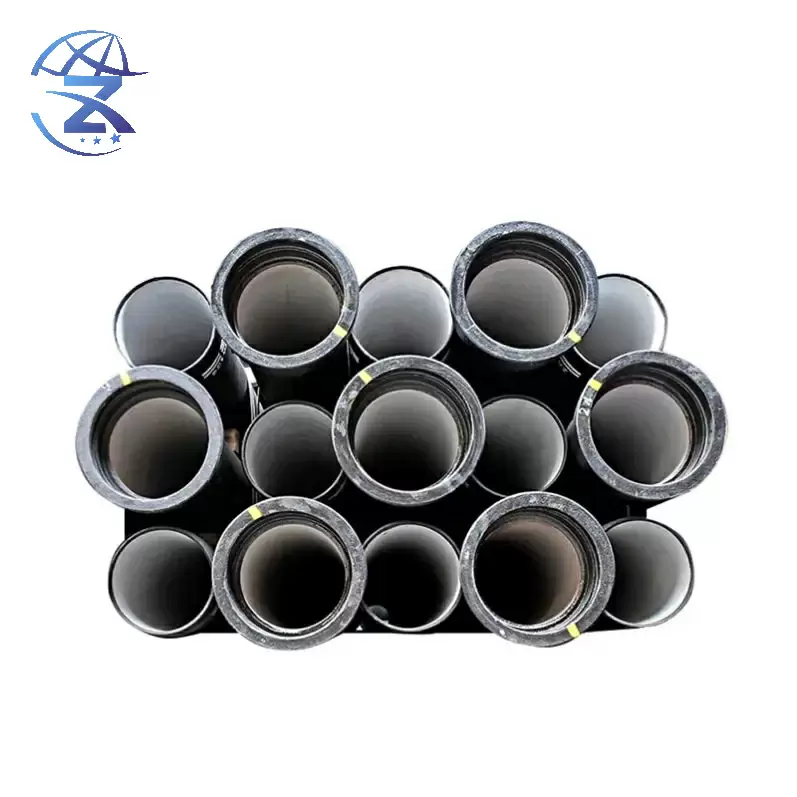

Product Display

Ductile iron pipe, made from ductile cast iron, is a graphite-rich cast iron in which the graphite has a spheroidal shaped molecular structure. This molecular structure makes the cast iron less brittle and more resistant to impact than the other varieties, which have a flaky structure. The ductile iron pipe is used in trenchless technology for water and sewer lines. Ductile iron pipes can have a life of more than 100 years if they are coated within and without with non-corrosive linings like cement, asphalt, paint, or polyethylene encasement.




Ductile iron pipe has been the pipe of choice when it comes to installing water and sewer pipelines because this material can withstand the toughest conditions. It can be used for installing new pipelines or for replacing existing pipelines. Two of the most important methods used in trenchless technology, namely horizontal directional drilling and pipe bursting, are increasingly making use of ductile iron pipe because of its versatility and toughness. It is possible to assemble these pipes quickly in cartridge style, making this type of pipe a great option for undertaking repair or installation work in places with heavy human and vehicular traffic. When space is an issue, it is also possible to pull or push these pipes through the ground using long strings.


Ductile iron is produced by adding a closely controlled amount of magnesium alloy to a molten iron of low phosphorous and low sulfur content. The magnesium alloy addition produces a remarkable change in the microstructure by causing the carbon in the iron to assume a spheroidal or nodular shape, (as contrasted to the flake form of graphite in gray cast iron), and at the same time producing a finer grained iron matrix in the surrounding ferrite structure. As a result of this remarkable change, a far stronger, tougher, and ductile material is obtained.


In addition to the benefits of long life, corrosion resistance, high structural strength, and tight joints, ductile iron is also readily machinable, an important requirement in any pipe that must be drilled, tapped or cut.



Theoretical Weight Table
Nominal diameter DN(mm)outer diameter DE(mm)wall thicknessT(mm)Approximate weight of socket convex part (kg)Straight part weight per meter (kg)Total mass (kg) (standard working length 6000mm)Total mass (kg) (standard working length 5000mm)


K8K9K10
K8K9K10K8K9K10K8K9K10
80986.06.06.03.412.212.212.276.576.576.564.464.464.4
1001186.06.06.14.314.915.115.193.7959578.879.879.8
1251446.06.06.35.718.318.31911911912197.297.2100.7
1501706.06.06.37.121.822.822.8138144144116.1121.1121.1
2002226.06.36.410.328.730.630.6183194194153.8163.3163.3
2502746.06.87.514.235.640.244.3228255280192.2215.2235.7
3003266.47.28.018.945.350.856.3290323357245.4272.9300.4
3503786.87.78.523.755.963.269.6359403441303.2339.7371.7
4004297.28.19.029.567.375.583.7433482532366407448
4504807.68.69.538.3808999515574632438.3483.3533.3
5005328.09.01042.892.8104.3115.6600669736506.8564.3620.8
6006358.89.91159.3122137.3152791882971669.3745.8819.3
7007389.610.81279.1155173.9193100911231237854.1948.61044.1
80084210.411.713102.6192215.22391255139415371062.61178.61297.6
90094511.212.614129.0232260.2289152116901863128914301574
1000104812.013.515161.3275309.3343.21811201722211536.31707.81877.3
1200126513.615.317237.7374420.1466.12482275830342107.72338.22568.2
1400146216.017.119385.3487.0547.2

3669

3121
1600166818.418.921.0526.0614.5690.3

4015




Ductile Iron Pipe Has Better Mechanical Performance


PerformanceCentrifugal ductile iron pipeGray iron casting pipeSteel pipe
Resistance to tensile stress≥420(Mpa)150~260≥400
Bending strength≥590 (Mpa)200~360≥400
Extensibility   (N/mm2)DN80-1000≥10 DN1200-2200≥7/≥18
Elastic CoefficientApprox.16x104 (%)Approx.11x104Approx.16x104
Hardness≤230 (HB)≤230 (HB)Approx.140
Yield strength(N/mm2)300/


Applications


Ductile iron pipe has been the pipe of choice when it comes to installing water and sewer pipelines because this material can withstand the toughest conditions. It can be used for installing new pipelines or for replacing existing pipelines


Product Inventory


We are a professional steel dealer. With the support of the most professional steel manufacturers and a large number of customers, we can not only provide you with ordinary steel but also help you find very personalized steels, such as special steel grades, Special sizes, special craft shapes.


Packaging and Shipping


We adopt standard export shipping packaging and bundles steel strips according to the size of the ductile iron pipe. According to our delivery experience, a 20-foot container can hold 22 tons of carbon steel, and a 40-foot container can hold 25 tons of carbon steel. For larger orders, we use bulk vessels to transport you, and the price is cheaper. Also, we can customize the packaging according to the needs of customers.



Container size


20ft STANDARD: 5895mm(Length)x2350mm(Width)x2392mm(High)
40ft STANDARD: 12029mm(Length)x2350mm(Width)x2392mm(High)
40ft HIGH-CUBE:12024mm(Length)x2350mm(Width)x2697mm(High
