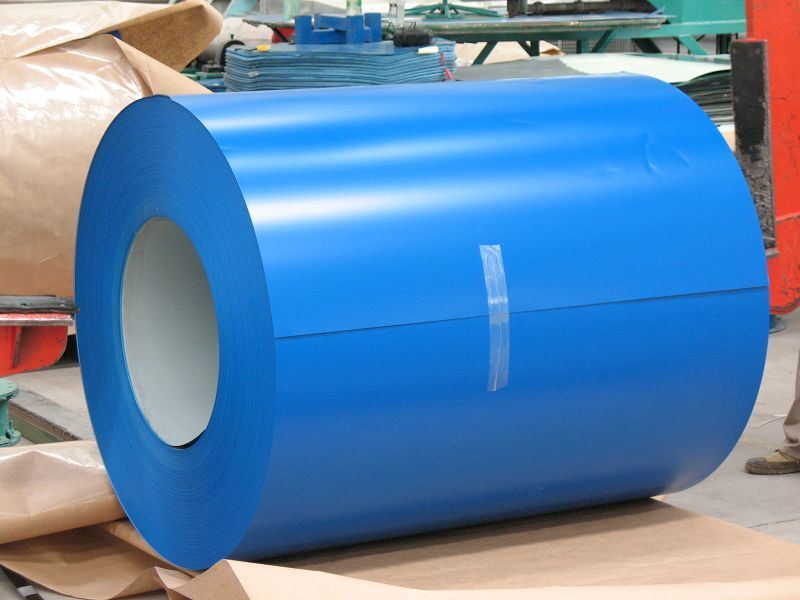

What is PPGI?

PPGI (Pre-Painted Galvanized Iron) refers to a composite material that uses galvanized steel as the substrate and is coated with an organic coating on the surface. It combines the corrosion resistance of the galvanized layer with the decorative and functional properties of the coating, making it widely used in construction, home appliances, transportation, and other fields. Its production process includes steps such as galvanized substrate preparation, chemical pretreatment, primer coating, topcoat application, and high-temperature curing, ensuring a strong bond between the coating and the substrate, as well as both aesthetic appeal and durability.

I. Production Process Analysis

The production process of PPGI can be divided into the following steps:

1. Substrate Treatment: High-quality cold-rolled steel is selected and a zinc layer is formed through the hot-dip galvanizing process to enhance corrosion resistance.

2. Chemical Cleaning: Removes surface oil and oxides to improve coating adhesion.

3. Coating Application: A roller coating or spray coating process is used to apply a primer (such as epoxy resin) and a topcoat (such as polyester, fluorocarbon, etc.) sequentially.

4. High-Temperature Curing: Curing in an oven at temperatures above 200°C forms a dense protective film on the coating.

II. Coating and Substrate Options

1. Coating Types:

• Polyester (PE): Cost-effective, rich in colors, suitable for general indoor environments.

• Silicone-Modified Polyester (SMP): Improved weather resistance, suitable for moderately corrosive environments.

• High-Durability Polyester (HDP): UV-resistant and anti-chalking, ideal for building exteriors.

• Polyvinylidene Fluoride (PVDF): Ultra-weather-resistant, with a lifespan of over 20 years, the top choice for high-end buildings.

2. Substrate Types:

• Hot-Dip Galvanized Substrate (GI): Low cost, moderate corrosion resistance.

• Galvalume Substrate (GL): Aluminum-zinc alloy layer, 3 times more salt spray corrosion resistant than pure zinc, suitable for coastal or chemical areas.

• Electro-Galvanized Substrate (EG): Smooth surface, suitable for precision machining applications.

III. Specifications and Colors

• Thickness Range: 0.12mm-1.2mm (commonly 0.3-0.8mm), meeting various strength requirements.

• Width Range: 600mm-1250mm (standard widths 914mm, 1000mm, 1219mm), compatible with various processing equipment.

• Color Options: Full range of RAL color cards available, supports customized spraying to meet personalized design needs.

IV. Applicable Environments and Scenarios

1. Construction Field:

• Roofs, exterior walls, partitions (weather-resistant coatings, resistant to wind and rain erosion).

• Clean workshops, hospitals (antibacterial coatings, easy to clean).

2. Home Appliance Industry:

• Refrigerator, washing machine shells (scratch-resistant, oil-resistant).

3. Transportation Facilities:

• Highway noise barriers, bus stops (high strength, fade-resistant).

4. Furniture and Decoration:

• Cabinets, filing cabinets (environmentally friendly coatings, non-toxic and harmless).

V. The Most Correct Choice

PPGI pre-coated galvanized steel, with its core advantages of "corrosion resistance, light weight, easy processing, and environmental protection", has become an ideal material for modern industry and construction. Whether it's for harsh industrial environments or commercial spaces pursuing aesthetic design, PPGI can provide customized solutions. Choosing PPGI means choosing a future of "low-cost maintenance, long lifespan, and high cost-effectiveness"!

Contact us now to get your exclusive material solution and free samples! Let PPGI add safety and visual charm to your projects, creating sustainable value together!
